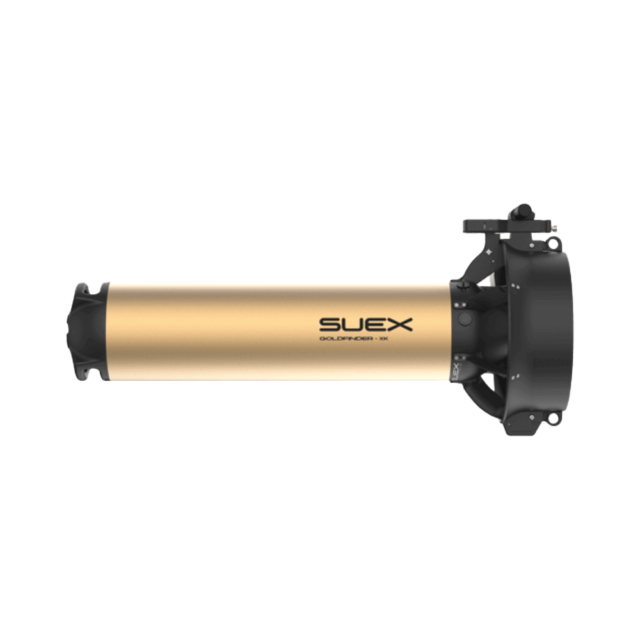

Goldfinder-XK

Fast Troubleshooting

• The SCOOTER does not run. When the trigger is activated the propeller does not turn

  Open the SCOOTER, check that the batteries are charged and that the connectors are inserted and undamaged, then try again.

• Although the battery pack has been charged and the connectors are inserted the DPV does not run

  • The control system may be damaged – must be checked in an authorized SUEX service center;
  • The motor may be damaged – must be replaced in an authorized SUEX service center;
  • The battery pack may be damaged – must be replaced.

• The SCOOTER’s running time is visibly diminished

  The batteries need to be replaced.

• When the main switch is on, the SCOOTER runs continuously with no chance of stopping it

  The control card is damaged – must be replaced in an authorized SUEX service center.

• The motor is noisy

  The DPV needs to be serviced in an authorized SUEX service center.

• Vibrations are felt when the propeller rotates

  • The propeller is damaged – must be replaced;
  • The drive system is damaged – needs to be serviced in an authorized SUEX service center.

• The SCOOTER floods very slowly

  Replace all the O-rings and carefully check that the seating surfaces are not damaged.

• The control trigger sticks and the SCOOTER remains running

  Shut off the SCOOTER, try to slide the starting piston, driven by the trigger, to get out any foreign bodies, try to start again. If the SCOOTER continues to work, the starting system must be verified, probably it was damaged by a shock.

• There are oil stains on the conic end of the case near the propeller or it is visibly greasy

  The external propeller shaft seal is damaged and requires maintenance. The second internal seal prevents flooding but you should suspend SCOOTER use and replace the gaskets.

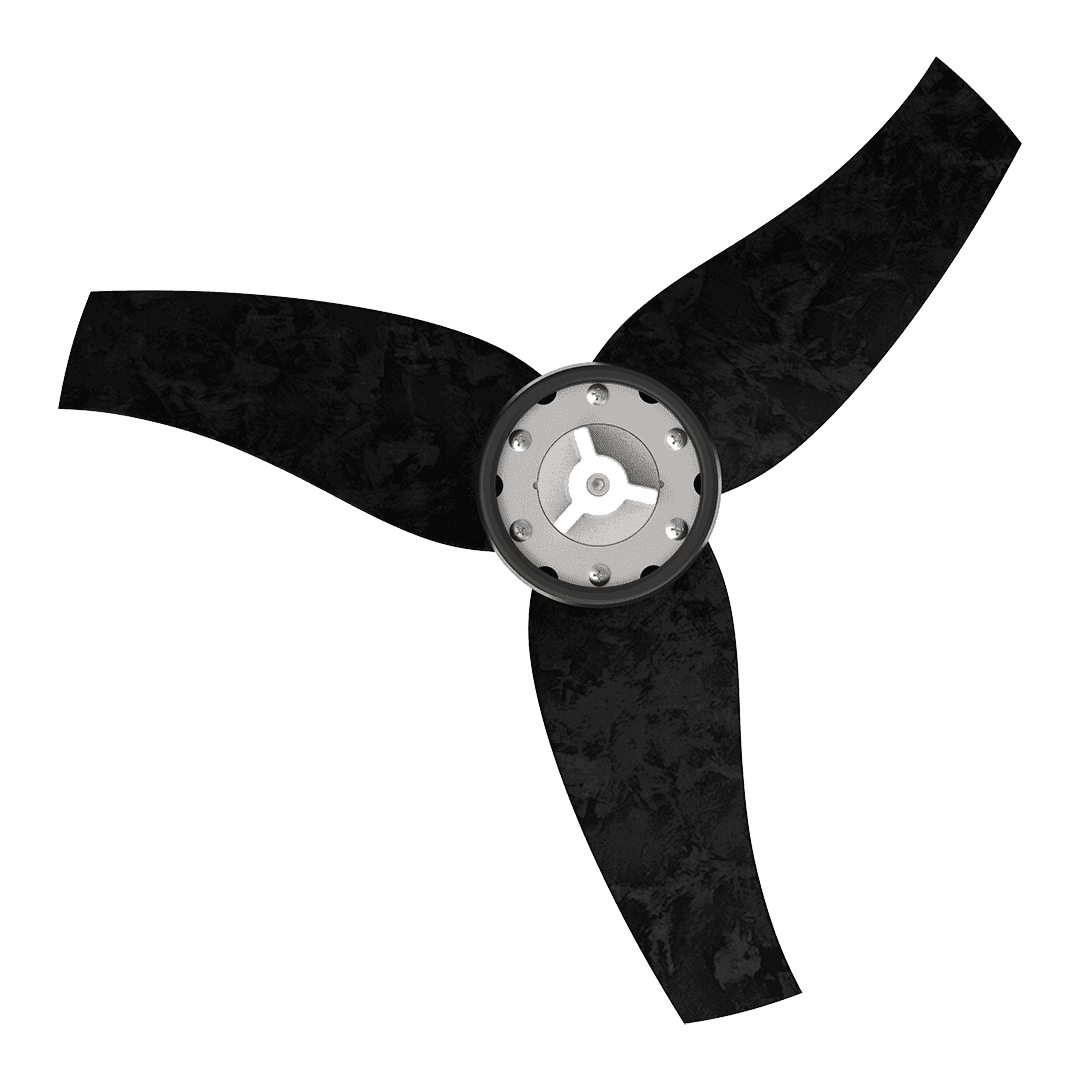

• Great effort is needed to turn the PROP LOCK PROPELLER white knob

  The knob has been damaged, it must be replaced.

• Even if the shaft pin is in the correct position in the propeller seat, the clutch skips and the dpv does not move forward

  The traction pin has been damaged and must be replaced. The propeller hub has been damaged and must be replaced.

• Tightening the knob turns freely and does not stop the PROP LOCK PROPELLER

  Too much force was used to tighten the knob and it was damaged, it must be replaced.

• Tightening the screw on the PROP LOCK PROPELLER knob turns it empty

  The knob has been damaged and must be replaced.

• PROP LOCK PROPELLER know protudes

  The PROP LOCK PROPELLER provides a type of propeller that is larger than the standard one: the white knob protrudes more. This means that when the SCOOTER, positioned vertically, is placed on the conveyor, it is necessary to be more careful: any blows to the propeller (which is more protruding) could damage both the PROP LOCK PROPELLER and the SCOOTER itself.
